Description

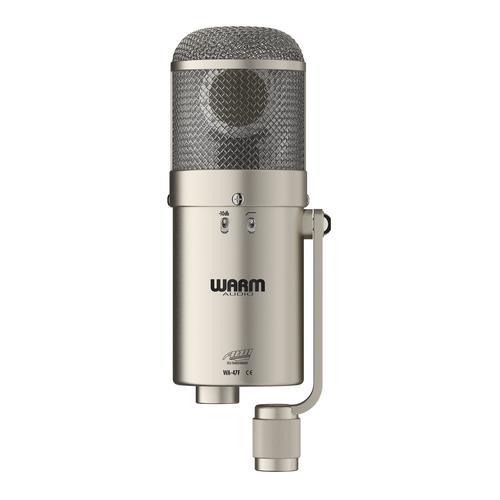

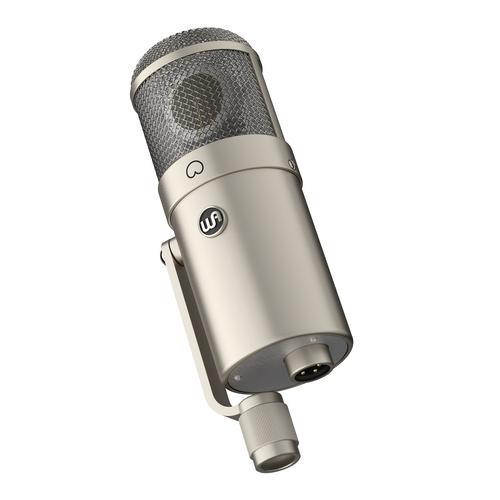

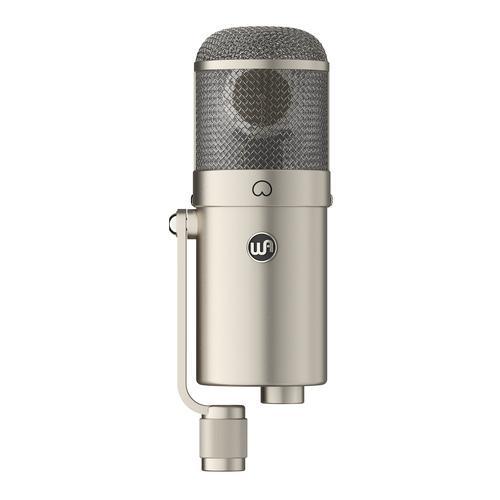

No Sound Too Loud The WA-47F is a faithful recreation of a high-SPL, low-noise classic celebrated as a ‘secret weapon’ across world class studios. The original U47 FET was released in 1969 and gained massive popularity inside recording studios for its ability to handle fast transients and high SPLs. The high SPL handling, especially for a condenser mic, meant that engineers could make kick drums sound huge, and it meant that engineers no longer had to compromise between volume and detail with certain sources. Tech Specs
Features & Highlights
- Gold Sputtered, Large Diaphragm, Single Backplate, K47 Style Capsule
- Custom TAB-Funkenwerk (AMI) USA Output Transformer
- Premium Fairchild Transistors
- WIMA and Polystyrene Capacitors
- Polar Pattern: Cardioid
- Max SPL: 137 dB, 1
- 47 dB with l0dB pad engaged
- Frequency Response: 20Hz-19kHz
- Output Impedance: 150 ohms
- Rated Load Impedance: >1kOhms
- Pads and Filters: -l0dB pad, 140 Hz low-cut filter
- Signal-to-Noise Ratio (+ weighted): 69 dB, 76 dB-A
- EIN / Self-noise (+ weighted): 25dB, 18 dB-A
- Total Weight: 3.5Ibs, Mic only: 2Ibs
- Mic Dimensions: 8″ x 2.75″ (20.3cm x 7cm)
Specifications
| Series | Warm Audio |
|---|---|
| Publisher (Brand) | Warm Audio |
| Format | Microphone |
| Publisher Code | WA-47F |
