Description
Overview
The Samson S-zone is a professional 4-input, 4-zone stereo mixer designed specifically for system installers who require precise control over multiple audio environments. Housed in a compact, single rack space unit, this mixer provides a streamlined solution for routing audio to different areas of a venue without sacrificing control or sound quality.

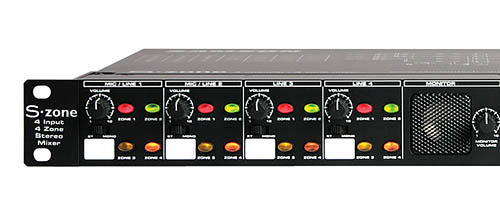

The S-zone stands out with its intuitive front-panel architecture, allowing operators to assign any of the four available inputs to any of the four output zones with a simple button press. This flexibility makes it an ideal hub for commercial audio installations where different rooms or sections require independent source management.
Key Details
- Flexible Routing: 4-channel/4-zone stereo mixing capability with a unique assignment matrix for rapid input-to-zone routing.
- Diverse Input Options: Equipped with two balanced microphone inputs and four stereo aux/line inputs to accommodate a wide range of audio sources.

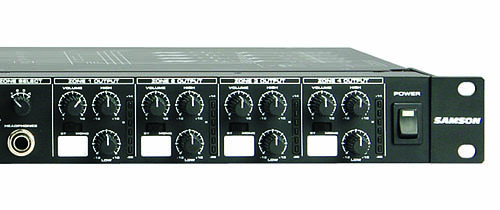

- Integrated Control: Dedicated front panel controls for input and output volume, ensuring immediate access to level adjustments.
- Tone Shaping: Independent 2-band equalization allows for tailored frequency response for each zone.
- Monitoring Tools: Features an onboard speaker for selectable zone monitoring and a dedicated headphone output for critical listening.

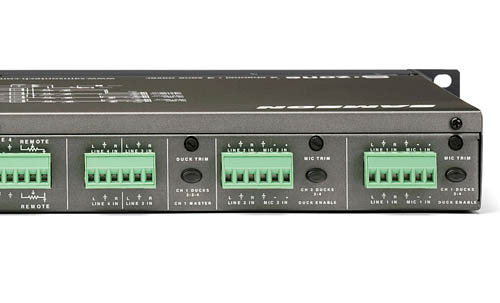

- Advanced Features: Includes ducking capabilities on the mic/stereo line inputs, perfect for paging systems where background music must automatically lower when a microphone is active.
Use Cases
- Commercial Venues: Ideal for restaurants or retail stores where different music sources need to be routed to the dining area, lounge, and patio independently.
- Office Complexes: Perfect for managing background audio across multiple conference rooms or lobby areas from a single rack location.
- Hospitality: Useful in hotels for managing lobby music while maintaining the ability to override zones for announcements via the ducking feature.
- Small Studios/Galleries: Provides a centralized point to manage multiple stereo sources across different exhibition spaces.
Installation
The Samson S-zone is designed for seamless integration into professional audio racks. It occupies one rack unit (1U) of space, making it highly efficient for tight equipment closets.

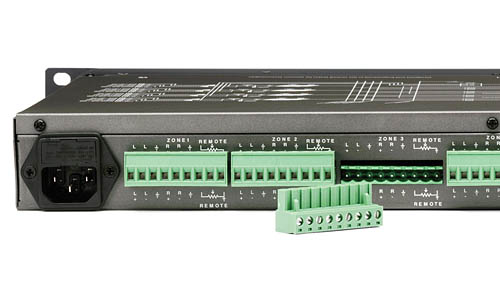

For output connectivity, the unit utilizes Euroblock connectors, which are the industry standard for permanent installations. These connectors provide a secure, screw-terminal connection that prevents accidental unplugging and simplifies wiring in complex multi-zone environments. The unit also supports remote volume control for added convenience in larger installations.
Compatibility
The S-zone is a hardware analog mixer and is compatible with any standard line-level audio source and powered speaker system. It utilizes balanced inputs for microphones to ensure noise-free long-distance cable runs and Euroblock outputs for professional wiring integration.
Additional Details
- Manufacturer: Samson
- Product Type: 4-Input/4-Zone Stereo Mixer
- Dimensions: 21″ x 13.75″ x 0.22″
- Weight: 9.66 lbs
- Fulfillment: Physical
