Description
Overview

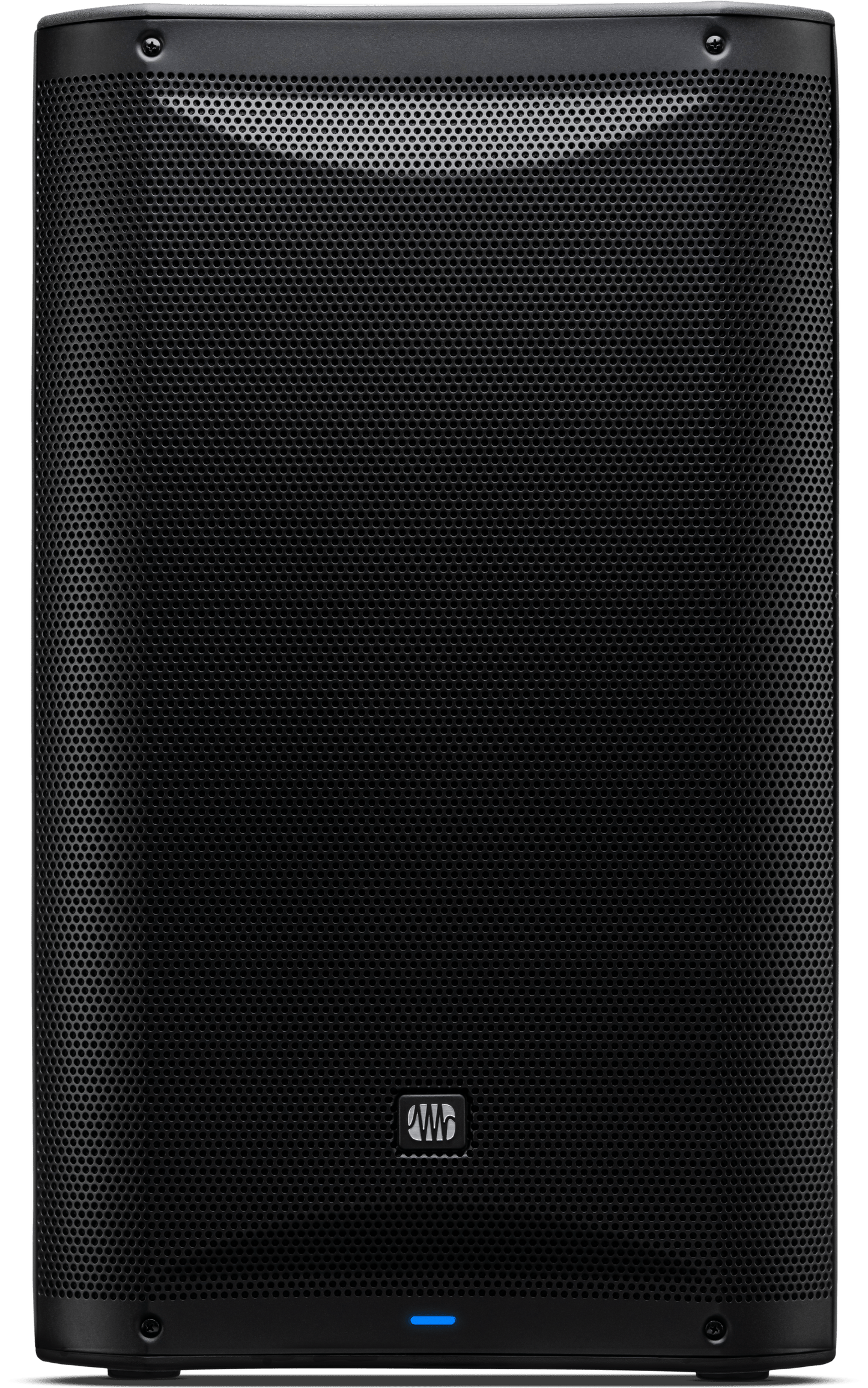

The PreSonus AIR XD 12 is a high-performance, 2-way active extended-definition loudspeaker designed to deliver professional-grade sound in a portable, versatile package. Combining massive power with a compact footprint, this speaker is engineered for those who need bold, crystal-clear audio whether they are performing at a mobile gig or installing a permanent sound system. With a peak output of 1,500W Class D power and a maximum SPL of 132 dB, the AIR XD 12 provides the headroom and punch required for demanding environments without sacrificing sonic clarity.
Key Details
- Powerful Driver Array: Features a custom 12-inch woofer with a 2.56-inch voice coil for deep, authoritative lows and a 1.35-inch high-frequency compression driver for detailed, transparent highs.
- High-Efficiency Amplification: Driven by over 1,500W of Class D power, ensuring clean performance and high headroom across the frequency spectrum.
- Integrated Control Center: A large, full-color LCD screen provides real-time metering and intuitive access to onboard system tuning and EQ.
- Advanced DSP Presets: Quickly optimize your sound with tailored presets for Front-of-House, Monitor Wedges, Music Playback, Speech Clarity, and Enhanced Low-End Warmth.
- Precision Tuning: Adjustable treble and bass controls offer a ±10 dB boost or cut to fine-tune the audio to the specific acoustics of your venue.
- Wireless Connectivity: Built-in Bluetooth allows for fast wireless streaming, featuring TWS Bridge Mode to pair two speakers for a true wireless stereo experience.
- Onboard Mixing: Integrated 3-channel mixer featuring dual XLR/1/4” combo inputs and a stereo 1/8“ auxiliary input for flexible source integration.
Use Cases
- Mobile DJing & Events: Ideal for weddings, parties, and corporate events where rapid setup and wireless stereo pairing via TWS are essential.
- Live Performance: Use as a powerful Front-of-House (FOH) main speaker or as a high-fidelity stage monitor wedge.
- Public Speaking: Utilize the “Speech Clarity” DSP preset to ensure vocals remain intelligible in large rooms or outdoor spaces.
- Permanent Installations: Optimized for fixed setups using the dedicated location presets for bracketed or flown applications.
Installation
The AIR XD 12 is designed for maximum deployment flexibility. The multi-angle cabinet includes non-skid rubber feet on the bottom for standard FOH use and on the side for immediate transition to wedge monitoring. For elevated positioning, the speaker features an integrated dual-position pole mount, allowing for a level orientation or a 7.5-degree downward tilt. For professional rigging, the enclosure is equipped with M10 fly points, and it can also be ground-stacked or mounted on a standard tripod. It is also compatible with AIR-series subwoofers via an optional pole.
Compatibility
- Input Compatibility: Dual XLR/1/4” combo jacks for microphones or line-level instruments; 1/8” stereo input for auxiliary devices.
- Wireless Compatibility: Bluetooth-enabled devices for audio streaming and TWS stereo pairing.
- Mounting Compatibility: Standard tripod mounts, M10 rigging points, and AIR-series subwoofer pole mounts.
Additional Details
- Manufacturer: PreSonus
- Model: AIR XD 12
- Format: 2-Way Active Loudspeaker
- Power Class: Class D
- Woofer Size: 12-inch
- Tweeter Size: 1.35-inch
