Description
Overview

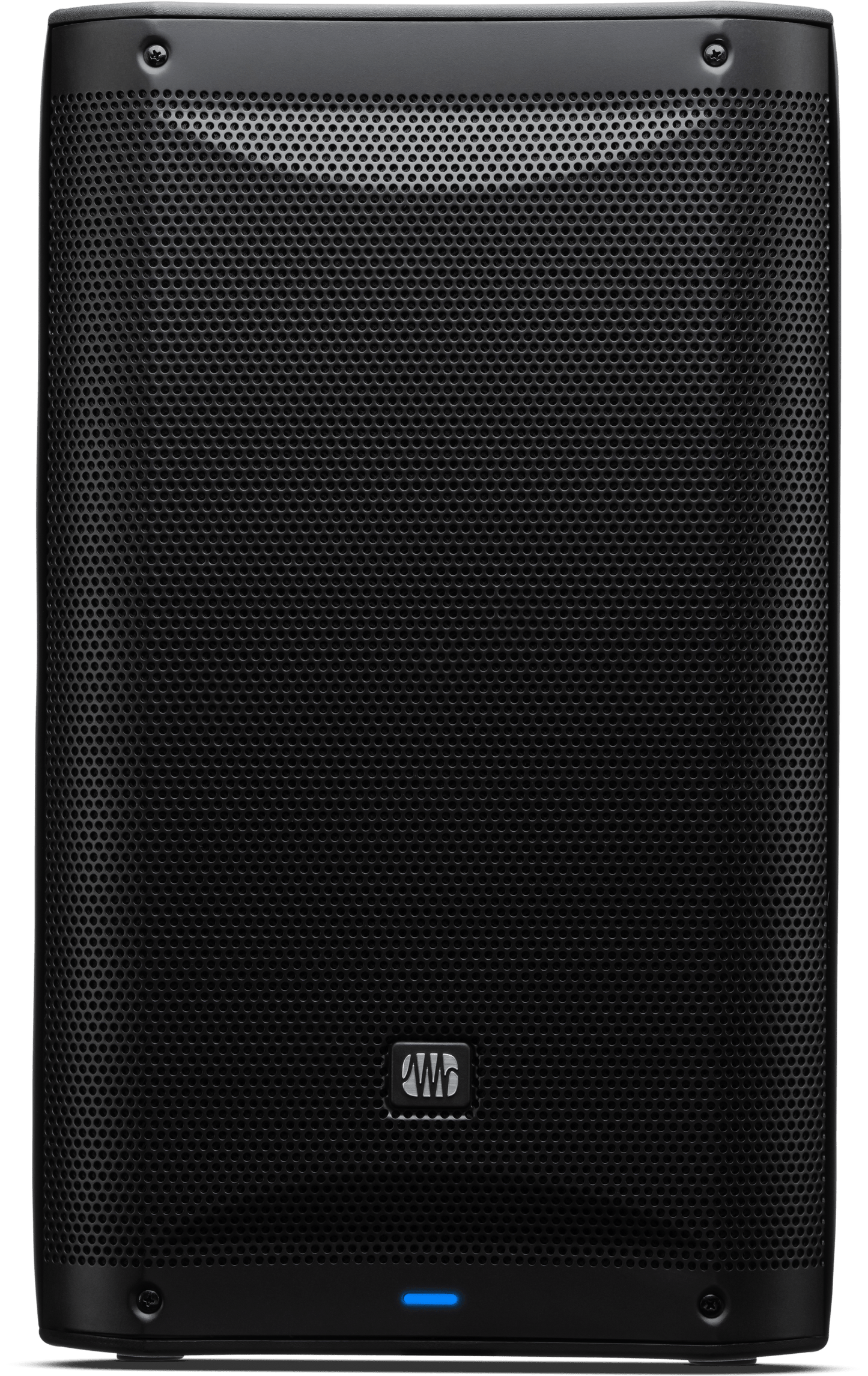

The PreSonus Air XD 10 is a high-performance, 2-way active extended-definition loudspeaker designed to deliver massive sound in a compact, portable footprint. Engineered for bold performance and effortless control, this speaker combines a custom 10-inch woofer with a high-frequency compression driver to produce crystal-clear audio with a maximum output of 130 dB. Powered by over 1,500W of efficient Class D amplification, the Air XD 10 provides the headroom necessary for demanding environments while remaining lightweight enough to fit easily in a vehicle for mobile transport.
Key Details
- Powerful Amplification: Over 1,500W of Class D power ensures clean, high-headroom performance across a wide frequency range.
- Precision Driver Array: Features a custom 10-inch woofer with a 2.36-inch voice coil for tight, punchy lows and a 1-inch HF compression driver for detailed high-end clarity.
- Intuitive Control: An onboard full-color LCD screen provides immediate access to system settings, tuning, and EQ.
- Advanced DSP: Integrated DSP presets allow for rapid optimization based on the application, including settings for front-of-house, stage monitoring, music playback, speech clarity, and enhanced low-end warmth.
- Wireless Connectivity: Built-in Bluetooth supports TWS (True Wireless Stereo) Bridge Mode, allowing two Air XD 10 units to be paired wirelessly for a full stereo image.
- Integrated Mixing: A 3-channel mixer includes dual XLR/1/4” combo inputs and a stereo 1/8” aux input for versatile source management.
Use Cases
- Mobile DJing & Events: Perfect for weddings and corporate events where rapid setup and wireless stereo pairing via Bluetooth are essential.
- Live Performance: Utilizable as a powerful front-of-house speaker or as a high-fidelity stage monitor thanks to its non-skid rubber feet and wedge-compatible design.
- Permanent Installations: Ideal for venues requiring high-output audio with flexible mounting options, including flown or bracketed configurations.
- Public Speaking: The dedicated speech clarity DSP preset ensures vocals remain intelligible and crisp in large rooms.
Installation
The Air XD 10 is designed for maximum deployment flexibility. For standard setups, it can be tripod-mounted or placed on its non-skid rubber feet for floor or wedge use. For elevated positions, the cabinet features a dual-position pole mount that allows for either a level orientation or a 7.5-degree downward tilt to better cover the audience. For permanent overhead installations, the unit is equipped with M10 fly points. It can also be integrated into larger systems by pairing it with AIR-series subwoofers using an optional pole mount.
Compatibility
- Input Sources: Compatible with any audio source utilizing XLR, 1/4″ TRS/TS, or 1/8″ stereo connectors.
- Wireless: Compatible with Bluetooth-enabled devices for audio streaming and TWS stereo pairing with another PreSonus Air XD 10.
- Subwoofer Integration: Fully compatible with PreSonus AIR-series subwoofers.
Additional Details
- Manufacturer: PreSonus
- Model: Air XD 10
- Type: 2-Way Active Extended Definition Loudspeaker
- Amplification: Class D
- Woofer: 10-inch custom woofer (2.36-inch voice coil)
- HF Driver: 1-inch compression driver
