Description
Overview

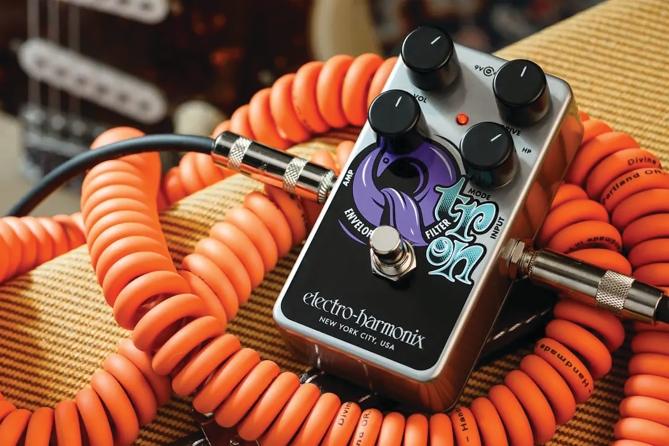

The Nano Q-Tron Envelope Filter is a dynamic, interactive effect that brings the legendary heritage of Electro-Harmonix envelope filters into a compact, pedalboard-friendly format. Unlike a standard wah pedal, the Nano Q-Tron is controlled by your playing dynamics; the volume of your input signal (the envelope) dictates the cutoff or center frequency of the filter sweep.
This results in a highly responsive “auto-wah” effect that ranges from subtle tonal shifts to aggressive, ultra-funky quacks. Because it reacts to how hard you strike the strings, it allows for an expressive, organic performance that feels like an extension of your instrument.
Key Details
- Dynamic Response: The filter sweep is triggered by your playing style, making the effect super interactive and sensitive to touch.
- Drive Control: Adjusts the filter sweep sensitivity, allowing you to fine-tune how the pedal responds to your specific instrument’s output and playing dynamics.
- Q Control: Sets the peak bandwidth of the filter, determining whether the effect is a subtle tonal movement or a dramatic, sharp peak.
- Mode Switching: A three-position switch allows you to select the frequency range the filter passes:
LP (Low Pass): Emphasizes the low frequencies.
BP (Band Pass): Focuses on the midrange.
HP (High Pass): Emphasizes the high frequencies. - Volume Control: Dedicated VOL knob to manage the pedal’s overall output level.
- Build Quality: Housed in a rugged, compact enclosure designed for professional pedalboard integration.
Use Cases
- Funk and Soul: Create the classic “quack” and percussive rhythmic accents essential for funk guitar and bass lines.
- Psych-Rock and Experimental: Use the LP and HP modes to create sweeping, otherworldly textures and synth-like filter movements.
- Bass Enhancement: Add a rhythmic, popping character to bass guitar performances to cut through a dense mix.
- Multi-Instrumental: While ideal for guitar and bass, the Nano Q-Tron is equally effective on keyboards, horns, and other melodic instruments.
Installation
The Nano Q-Tron is designed for straightforward integration into any signal chain. For the most responsive “envelope” tracking, it is generally recommended to place this pedal early in your chain, before overdrive or distortion. The pedal features True Bypass switching to ensure your dry signal remains pure when the effect is disengaged.
Compatibility
- Instruments: Compatible with electric guitars, bass guitars, synthesizers, and horns.
- Power Requirements: Can be powered by a standard 9V battery (included) or an optional 9V DC power supply.
Additional Details
- Manufacturer: Electro-Harmonix
- Format: Physical Pedal
- Dimensions: 5.75″ (W) x 3.25″ (L) x 0.17″ (H)
- Weight: 0.71 lbs
