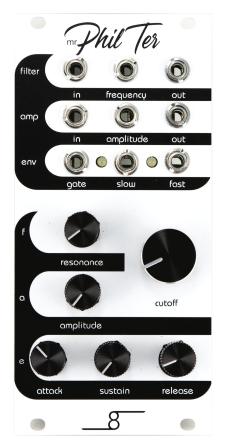

Mr. Phil Ter

Description

Mr. Phil Ter is a module that does a whole bunch of analog and digital stuff, in not a lot of HP. Phil’s digital bits are solely comprised of the envelope generator, for your envelopy pleasure. The analog bits, developed in partnership with the ultra-serious folks at Pittsburgh Modular Synthesizers (a very serious synthesizer company) and are comprised of a voltage controlled amplifier circuit (VCA) as well as an extra juicy old-school transistor ladder filter, perfect for those of you who are not afraid of ladders or transistors. Pair Mr. Phil Ter up with any oscillator or crank up its own filter section’s resonance and self-oscillate. Features include:

Features & Highlights

• Voltage range: 0-10V
• Gate trigger threshold voltage: +5V
• Attack, Release, and Decay times 0-10s (slow). 0-5s (fast)
• Easter egg mode – quantize itself to 7bit for a steppy sample & hold effect
• Classic low-pass transistor ladder filter design
• Self-oscillate when resonance is cranked, creating a super clean trackable sine wave
• 33mA power draw when running +12V rail
• 22mA power draw when running +5V rail
• 36mA power draw when running -12V
