Description
Overview

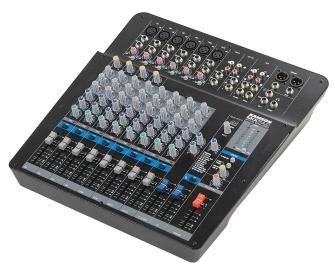

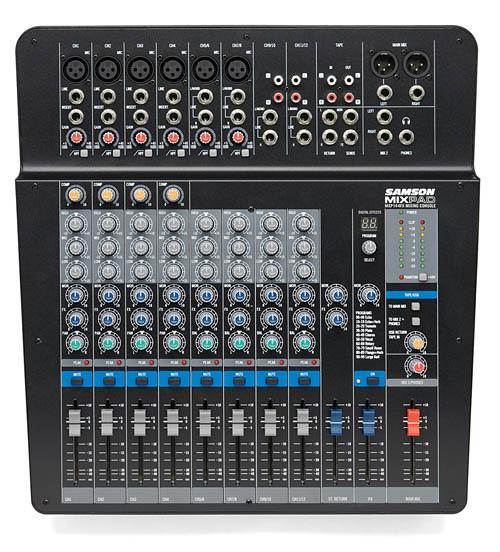

The Samson Mixpad MXP144FX is a professional 14-channel analog stereo mixer designed to deliver uncompromising sonic quality and roadworthy durability. Engineered for high-performance environments, it features an ultra-low noise, high-headroom design that ensures pure, authentic audio signals from every input to every output.
At the heart of the MXP144FX are Samson’s MDR (Maximum Dynamic Range) mic preamps, which provide a wide frequency response and definitive channel separation. Whether you are managing a live band, a broadcast, or an educational setting, this mixer offers the precision and reliability needed for professional-grade sound reinforcement.
Key Details
- MDR Mic Preamps: Six high-quality preamps designed for natural response and maximum dynamic range.
- Integrated Dynamics: Four channels feature single-knob compressors, allowing for studio-quality dynamic control without the need for external hardware.
- Digital Effects Processor: Includes 100 24-bit, low-noise digital effects to add professional polish to your mixes.
- USB Connectivity: High-integrity, bi-directional USB connection for recording mixes directly to a DAW or integrating digital files from a computer.
- Precision Control: All channels are equipped with 60mm faders, 3-band EQ, Gain trim, high-pass filters, and mute switches.
- Routing Flexibility: Each channel includes a pre-fader Aux send for monitor mixes and a post-fader Aux send for external effects.
- Visual Monitoring: 8-segment LED level metering and bright-colored knobs ensure efficient operation in low-light environments.
Use Cases
- Live Band Rehearsals: Manage multiple microphones and instruments with precision faders and integrated compression for a balanced rehearsal sound.
- Broadcast & Podcasting: Utilize the bi-directional USB interface to route audio between the mixer and a computer for seamless recording and playback.
- Educational Settings: A durable, comprehensive mixing solution for school auditoriums or music classrooms.
- Small Venue Performance: Use the built-in 24-bit effects and flexible output routing to manage front-of-house and monitor mixes simultaneously.
Installation
The MXP144FX is a hardware analog mixer and does not require software installation for basic operation. To set up:
- Power: Connect to a standard power source.
- Inputs: Plug microphones into the XLR inputs (utilize the selectable 48V phantom power for condenser microphones) and line-level sources into the 1/4″ inputs.
- USB Integration: Connect the USB port to your computer to enable DAW recording or digital audio playback.
- Outputs: Route your main mix via the XLR or 1/4″ Main Outs, and use the RCA Tape out for secondary recording.
Compatibility
The Samson Mixpad MXP144FX is an analog hardware device. It is compatible with:
- Microphones: Dynamic and Condenser microphones (via 48V phantom power).
- Audio Sources: Any standard line-level audio equipment via 1/4″ or RCA connections.
- Computers: USB-compatible systems for bi-directional audio transfer to/from DAWs.
Additional Details
- Manufacturer: Samson
- Model: MXP144FX
- SKU: 140105
- Format: Physical Analog Mixer
- Dimensions: 18.25 x 6.5 x 1.14 inches
- Weight: 11 lbs
