Description
Overview

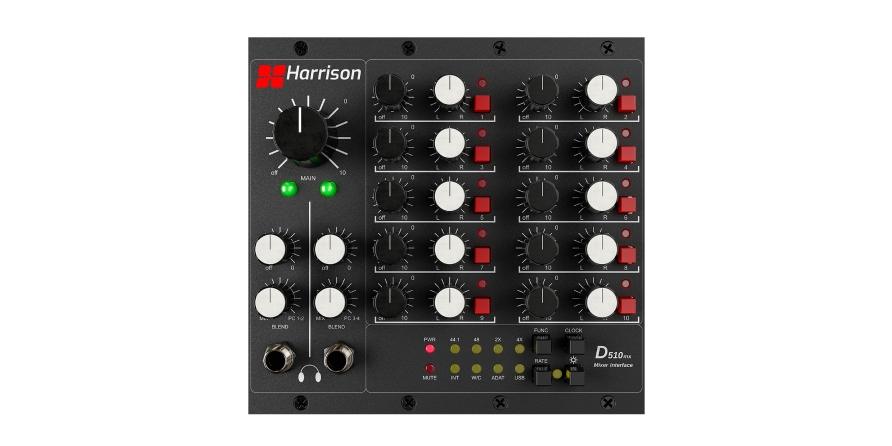

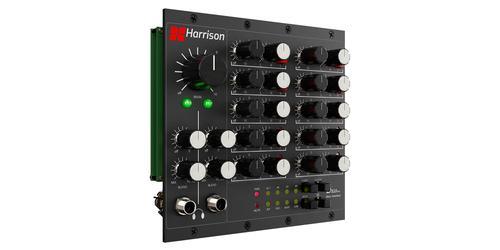

The Harrison Audio D510mx Mixed I/O Interface is a specialized mixer module designed to transform the Harrison D510r 500 Series rack into a professional 10×2 analog summing mixer. Leveraging Harrison’s legendary sonic heritage—the same engineering that shaped the sound of iconic artists like Michael Jackson and Led Zeppelin—the D510mx allows producers and engineers to achieve the renowned weight and “3D” depth of analog summing within a compact, portable footprint.
Key Details
- Analog Summing Power: Converts your D510r rack into a 10×2 analog summing mixer, providing a high-end analog stage for stereo mixdowns.
- Comprehensive Channel Control: Features individual pan and level controls for each of the 500 Series slots to ensure precise placement and balance in the mix.
- Flexible Routing: Create stereo mixes from eight 500 Series modules plus two additional analog inputs (slots 9 and 10).
- Advanced Monitoring: Equipped with dual independent headphone outputs featuring a “blend” control to balance between the analog MIX and PC/Digital sources.
- Master Control: Includes a dedicated “MAIN” mix output control for final level management of the summed signal.
Use Cases
- Hybrid Mixing: Use the D510mx to route individual tracks from your DAW through 500 Series outboard gear and sum them in the analog domain for a wider, more cohesive sound.

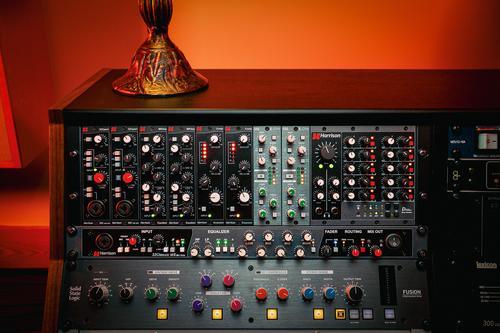

- Portable Tracking: When paired with the D510r rack, this module helps create a powerful eight-channel tracking system housed in only 3U of rack space.
- Custom Monitoring: Utilize the dual headphone outputs to provide separate monitor mixes for artists and engineers, blending direct analog signals with DAW returns.
Installation

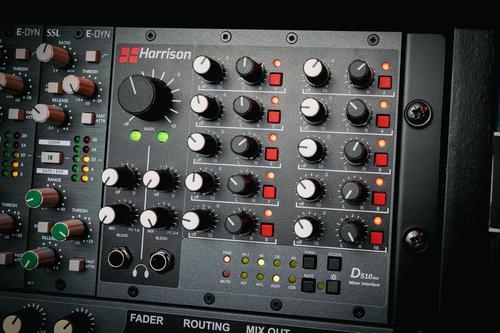

The D510mx is designed for seamless integration into the Harrison D510r 500 Series rack. It occupies two of the available slots within the rack system. Once installed, it provides the summing infrastructure for the remaining eight slots, allowing for a streamlined workflow between your 500 Series modules and the main stereo output.
Compatibility
- Required Hardware: Must be used with the Harrison D510r 500 Series rack.
- Optional Enhancements: Fully compatible with the D510dante (AoIP) or D510usb audio interface cards for digital connectivity and DAW integration.
- Module Support: Compatible with standard 500 Series modules across the eight available slots.
Additional Details
- Manufacturer: Harrison
- Product Type: Mixer Interface / Summing Module
- Dimensions: 6.69″ x 6.3″ x 0.17″
- Weight: 1.46 lbs
- Fulfillment: Physical
