Description
Overview

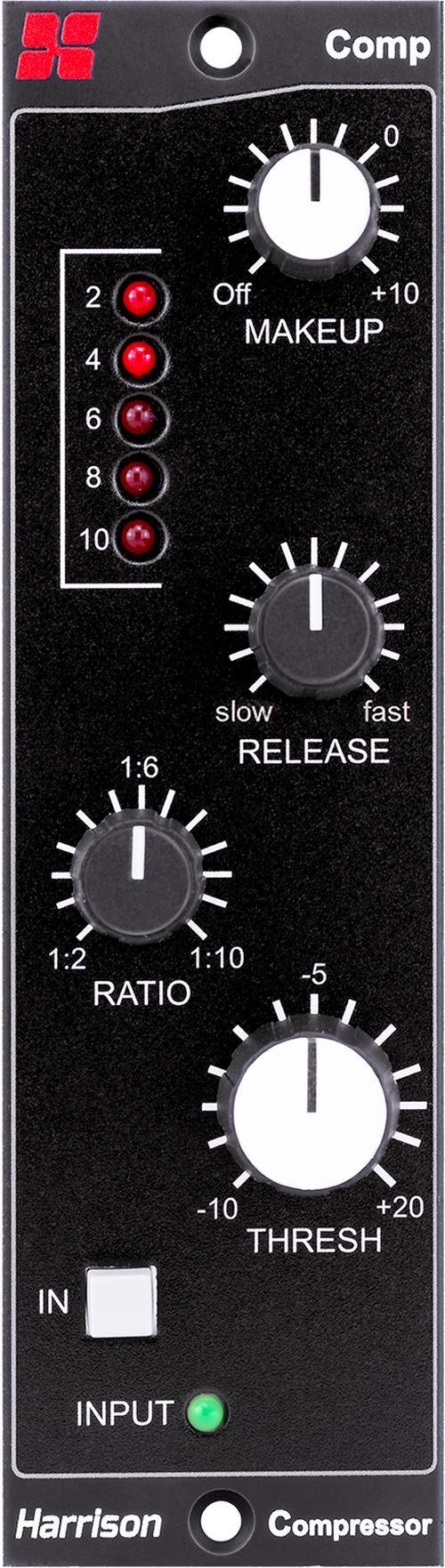

The Harrison Audio Comp Dynamics Module is a professional-grade 500 Series compressor designed to bring the legendary Harrison sound into a compact, modular format. Born from a need for broadcast-quality dynamics control and refined for music production, this module excels as both a transparent leveling tool and a high-character “vibe” compressor.
Utilizing a classic feed-forward design, the Comp module provides a versatile solution for smoothing out wide dynamic ranges or adding aggressive punch to a mix. Whether you require subtle gain reduction for a polished vocal or heavy compression for driving drums, this module delivers outstanding analog performance with a streamlined, no-nonsense workflow.
Key Details
- THAT 2180 VCA Chip: Equipped with a high-performance VCA for precise, professional analog dynamics processing.
- Flexible Compression Range: Capable of transitioning from a transparent “leveler” to a character-driven compressor depending on the settings.
- Program-Dependent Attack: Features an intelligent attack time that adapts to the incoming signal for more natural results.
- Variable Release: A continuously variable release control allows you to dial in everything from “Fast” to “Slow” timing.
- Visual Monitoring: Includes an integrated input overload LED to prevent clipping and ensure optimal gain staging.
- Feed-Forward Design: Employs a classic feed-forward architecture for consistent and predictable compression behavior.
Use Cases
- Transparent Leveling: Use a 1:2 ratio with a fast release and 2-3 dB of gain reduction to delicately smooth out vocals and guitars without audible artifacts.
- Aggressive Character: Slam the ratio in combination with a slow release to create a “sizzling” vibe on bass and drums, adding weight and excitement to the rhythm section.
- Broadcast Control: Ideal for controlling peaks and preventing clipping in high-output signals, maintaining the integrity of the original source.
Installation
The Harrison Comp is a 500 Series module. Installation requires a compatible 500 Series chassis (power supply and rack). Simply slide the module into an available slot in your chassis and secure it with the provided mounting screws. No external power cables are required as the module draws power directly from the chassis backplane.
Compatibility
- Format: Compatible with all standard 500 Series format chassis.
Additional Details
- Manufacturer: Harrison
- Product Type: 500 Series Dynamics Module
- Dimensions: 8″ x 6.3″ x 0.15″
- Weight: 0.66 lbs
- Fulfillment: Physical
