Description
Overview

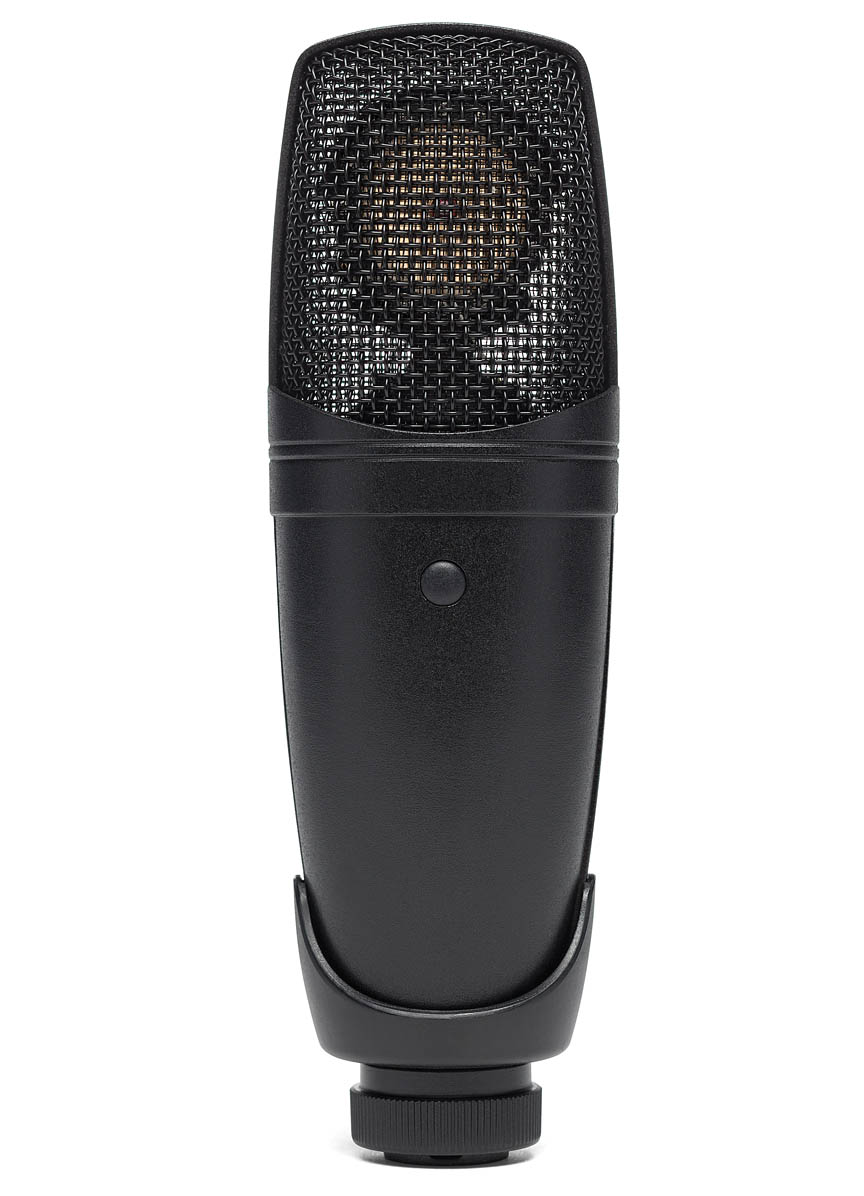

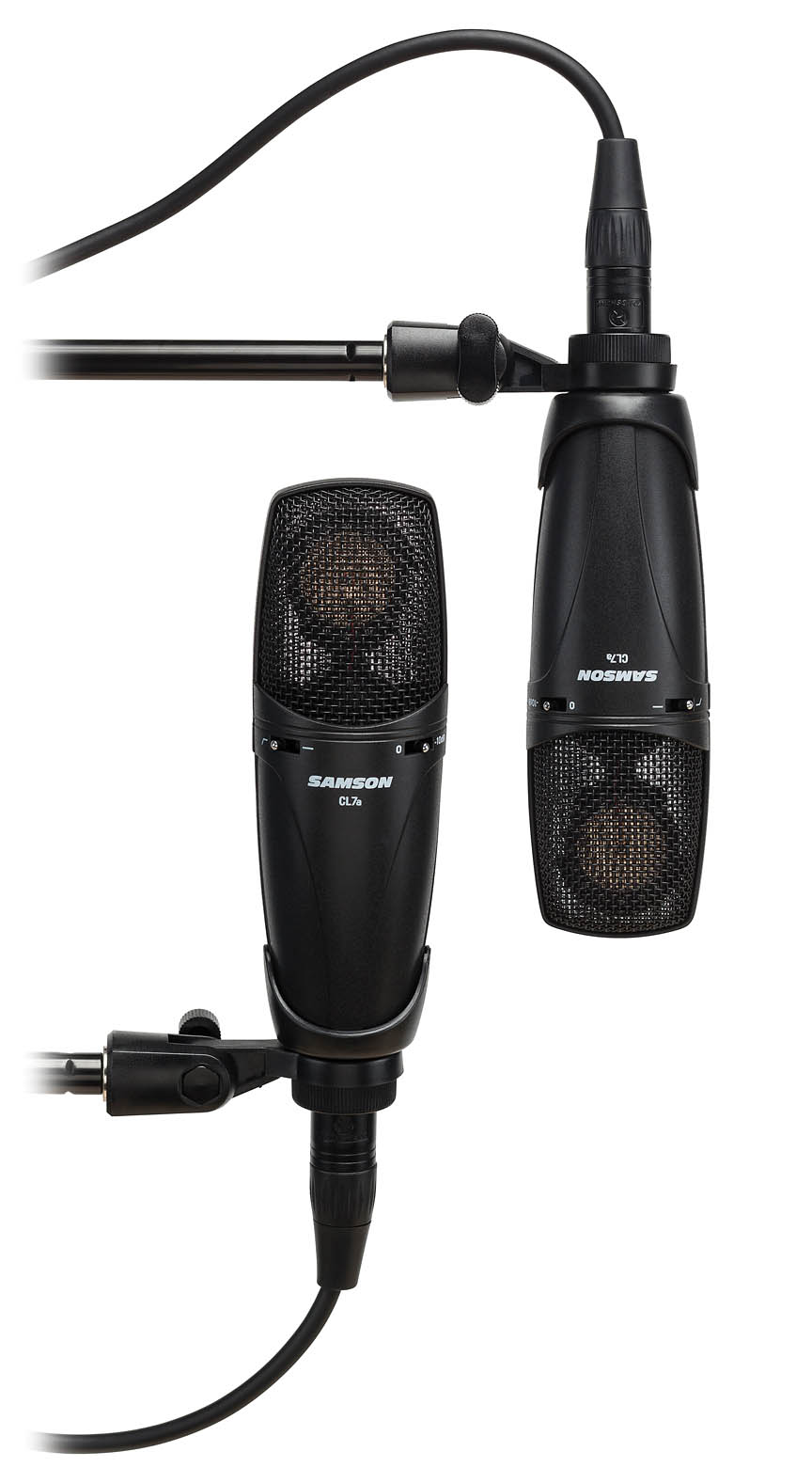

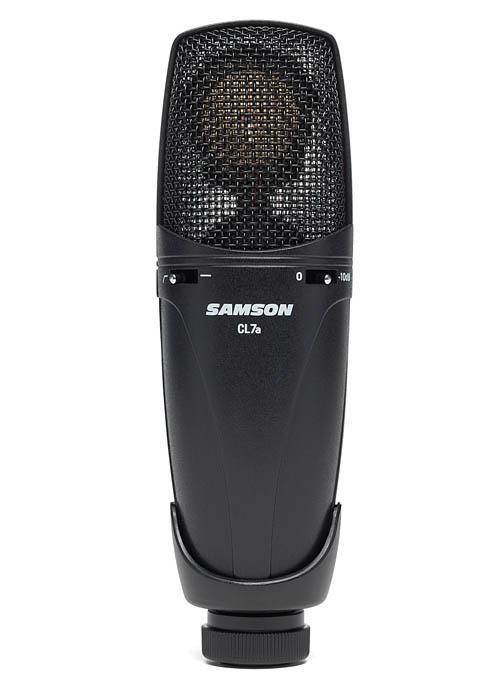

The Samson CL7a is a professional-grade large-capsule condenser microphone engineered for versatility across home, project, and professional studio environments. Designed to deliver a smooth and balanced sonic profile, it utilizes a 1.1″ gold-sputtered capsule with an ultra-thin 3-micron diaphragm to capture high-fidelity audio with exceptional clarity.
Built for durability and precision, the CL7a features a rugged die-cast body and an internal shock-mount system that protects the capsule from mechanical vibrations and handling noise, ensuring a clean signal path for every recording.
Key Details
- Premium Capsule: Large 1.1″ internally shock-mounted capsule featuring a 3-micron gold sputtered diaphragm for detailed transient response.
- Cardioid Polar Pattern: Focused pickup pattern that provides enhanced isolation by rejecting off-axis sounds from other instruments or room noise.
- Frequency Response: Wide 20Hz to 20kHz range for full-spectrum audio reproduction.
- Integrated High-Pass Filter: Switchable filter (12dB per octave at 100Hz) to effectively reduce low-end rumble and wind noise.
- Signal Management: Switchable 10dB pad allows the microphone to handle extremely high SPL (Sound Pressure Levels) without signal overload.
- Robust Build: Solid die-cast construction for long-term reliability in demanding studio settings.
Use Cases
- Vocal Recording: Ideal for capturing expressive vocal performances, providing the presence and warmth needed for lead vocals and voice-overs.
- Acoustic Instruments: Perfect for preserving the natural tonality and nuance of acoustic guitars, pianos, and other stringed instruments.
- Overheads & Room Mics: The balanced response and cardioid pattern make it an effective choice for drum overheads or capturing ambient room sound.
Installation
The Samson CL7a is a condenser microphone and requires 36-52 Volt phantom power to operate. To set up:
- Connect the microphone to your audio interface or mixing console using a standard XLR cable.
- Engage the 48V phantom power switch on your interface or preamp.
- Adjust the high-pass filter and 10dB pad based on the source material (e.g., engage the pad for loud amplifiers or the filter for low-frequency rumble).
- Mount the microphone on a stable stand to maximize the effectiveness of the internal shock-mounting.
Compatibility
The Samson CL7a is compatible with any audio recording equipment that provides standard XLR connectivity and 48V phantom power, including:
- Audio Interfaces: All standard USB, Thunderbolt, or FireWire interfaces with XLR inputs.
- Mixing Consoles: Analog and digital mixers with phantom power capabilities.
- Preamps: Dedicated studio microphone preamplifiers.
Additional Details
- Manufacturer: Samson
- Model: CL7a
- Fulfillment: Physical
- Weight: 1.49 lbs
- Dimensions: 10″ x 4.25″ x 0.17″
