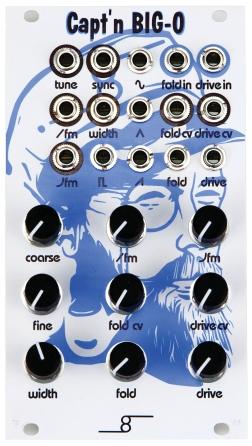

Capt’n Big-O

Description

Do you like analog waveforms? Capt’n Big-O is for people who like (or want to like) big massive analog sounds. 100% analog components, no oscillator on a chip here. The Capt’n was designed in partnership with the very serious folks at Pittsburgh Modular Synthesizers. It includes Pittsburgh’s famous wave folders, a new drive circuit, and it crams as much big analog waviness as possible in a voltage-controlled oscillator module. Features include:

Features & Highlights

• 100% analog, original design (not an oscillator on a chip)
• Waveforms (sine, triangle, saw, and square)
• Wave folder/waveshaper – routed by default to sine but patchable to any waveform or external source
• Drive circuit – essentially a 75x overdriven VCA (5V output)
• Linear and exponential frequency modulation (FM)
• Hard sync
• Pulsewidth modulation
• 120mA power draw when running +12V rail
• 108mA power draw when running -12V rail
• Frequency range of oscillator: full range – LFO through audible spectrum
• Input voltage range of oscillator = -10V to +10V

Specifications
