Description
Overview

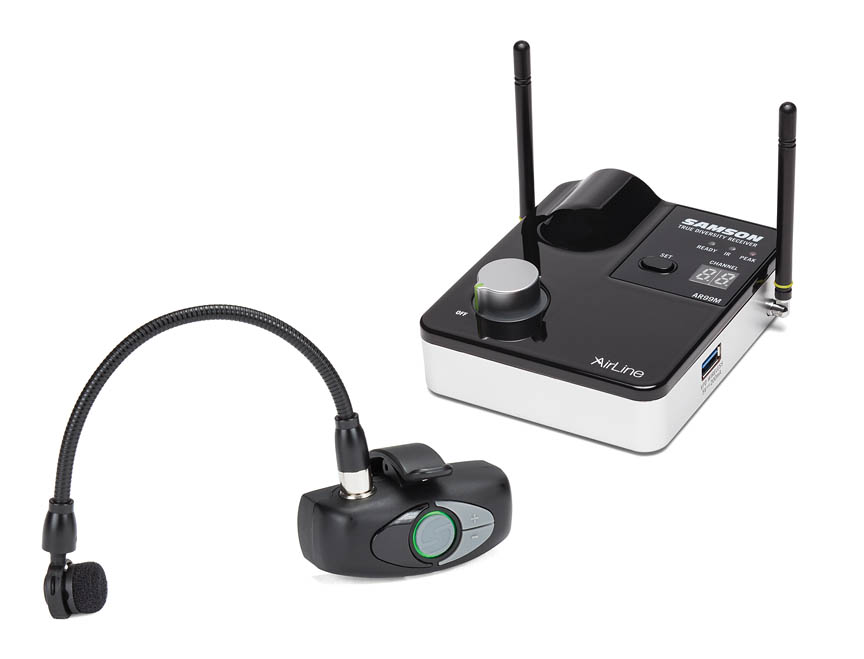

The Samson AirLine AWXm Micro UHF Wind Instrument Wireless System is a professional-grade wireless solution engineered specifically for the working horn player. By combining the innovative ATX clip-on transmitter with the ultra-portable AR99m micro receiver, this system eliminates the need for cumbersome beltpacks and cables, granting musicians total freedom of movement on stage.
Designed for high-definition sound reproduction, the AWXm ensures that the natural timbre of brass and woodwind instruments is preserved while maintaining a secure, interference-free connection. Its compact footprint makes it an ideal choice for performers who need a reliable, studio-quality wireless setup that fits easily into a standard gig bag.
Key Details

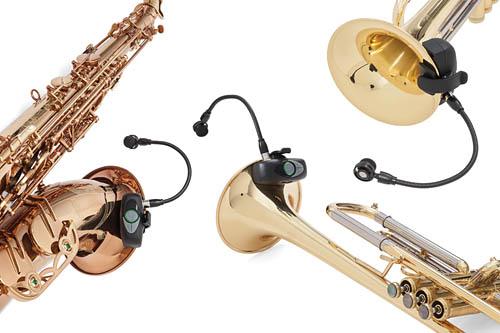

- ATX Wireless Transmitter: A lightweight, inconspicuous clip-on unit that mounts directly to the bell of the instrument, allowing for rapid switching between different instruments.
- HM60 Condenser Microphone: Specifically tuned for wind instruments with a frequency response of 20 Hz to 18 kHz and the ability to handle high sound pressure levels (SPL) up to 125 dB.
- Supercardioid Polar Pattern: Provides tight isolation of the instrument, significantly reducing the pickup of ambient stage noise and bleed from other musicians.
- 3-Point Halo Isolation Mount: A specialized mounting system designed to minimize mechanical vibrations and eliminate distracting keyclick noises.

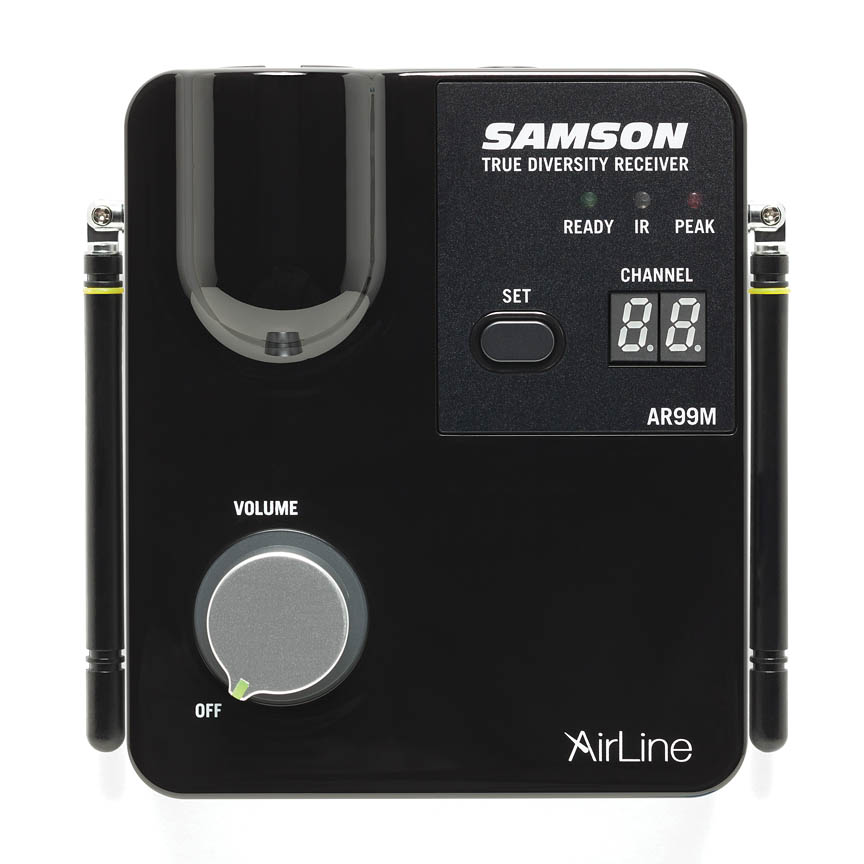

- AR99m Micro Receiver: A compact receiver featuring True RF Diversity for maximum clarity and a robust operating range of up to 300 feet.
- Intelligent Channel Selection: One-touch scanning analyzes 100 available channels to automatically select the clearest frequency for the current environment.
- Extended Battery Life: The ATX transmitter features a rechargeable battery providing up to 8 hours of continuous performance time.
Use Cases
- Club and Touring Musicians: Perfect for horn players who move dynamically across the stage and require a cable-free environment.
- Wedding and Event Performers: Ideal for high-pressure environments where quick setup and reliable, clear audio are essential.
- House of Worship: Provides a clean, professional look for choir or orchestral wind sections without trailing cables.
- Education and Corporate AV: A portable solution for lecturers or performers in multipurpose halls and auditoriums.
Installation
Setting up the AirLine AWXm is designed to be intuitive and fast:
- Transmitter Setup: Clip the ATX transmitter securely to the bell of your wind instrument. Ensure the HM60 microphone is positioned to capture the primary sound source.

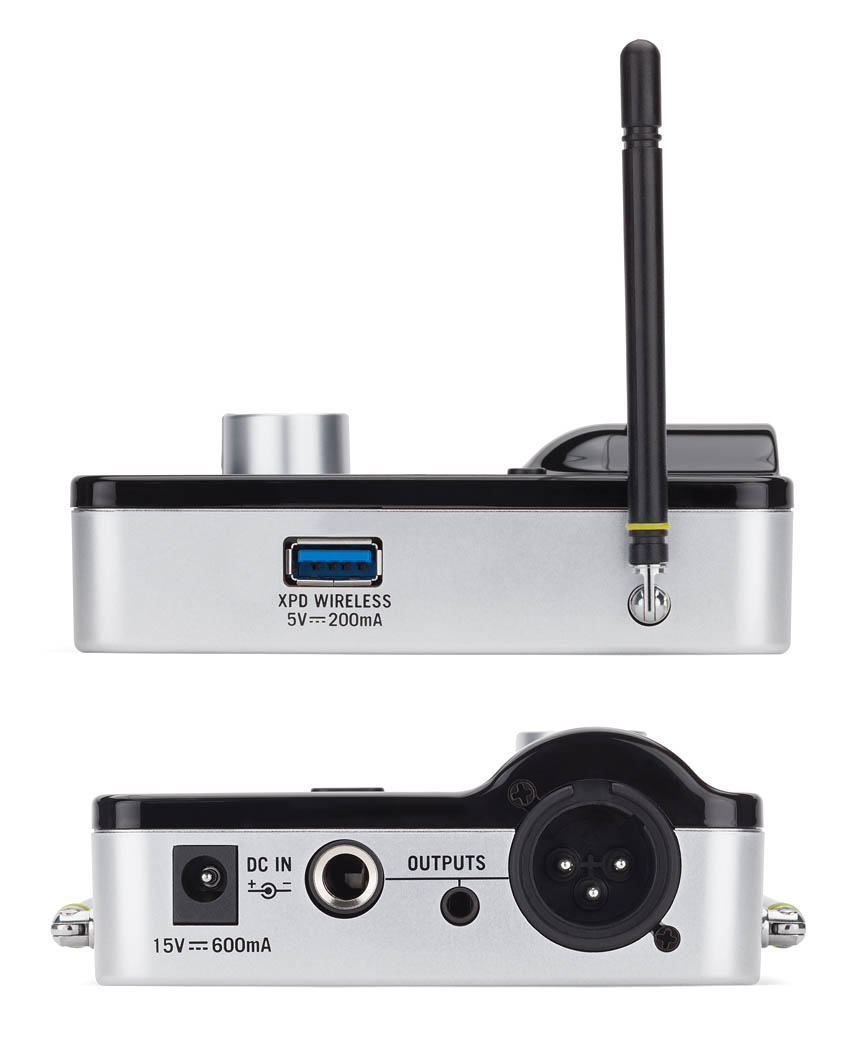

- Receiver Connection: Connect the AR99m receiver to your mixing console or amplifier using one of the three available outputs: XLR, 1/4-inch, or 1/8-inch.
- Frequency Sync: Use the receiver’s scan button to find the clearest available channel among the 100 options to avoid interference.
- Powering Up: Ensure the ATX transmitter is charged via its rechargeable battery before the performance.
Compatibility
The AR99m receiver is designed for broad integration across various audio environments:
- Output Compatibility: Compatible with any audio interface, mixer, or powered speaker supporting XLR, 1/4″, or 1/8″ inputs.
- System Expansion: Can be converted into a dual-channel system by connecting a Samson XPD Series USB Digital Wireless System (sold separately).
- Instrument Compatibility: Designed for use with a wide range of brass and woodwind instruments.
Additional Details
- Manufacturer: Samson
- Model: AirLine AWXm (HM60 SYS D-Band)
- Weight: 1.85 lbs
- Dimensions: 9″ x 9.5″ x 0.22″
- Fulfillment: Physical
