Description
Overview

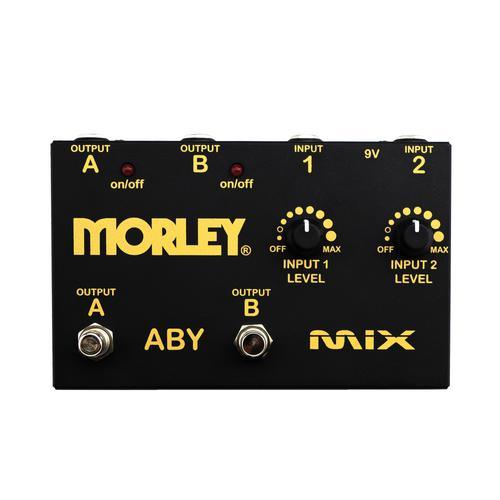

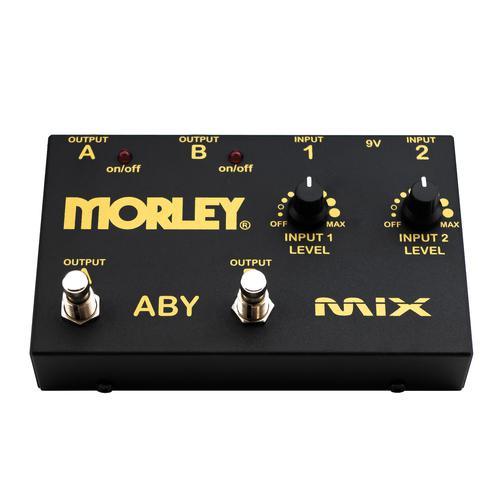

The Morley ABY Mix is a versatile signal routing solution designed to give musicians complete control over multiple input and output sources. Unlike a standard passive switcher, this unit is active and buffered, ensuring your signal remains strong and clear regardless of cable length or the number of devices in your chain. Whether you are blending two instruments into one amp or routing a single source to multiple destinations, the ABY Mix provides the flexibility needed for complex live rigs and studio setups.
Key Details
- Dual Input Routing: Route two independent input signals to two separate output sources with precision.
- Independent Level Controls: Each input features its own dedicated LEVEL control, allowing you to perfectly balance the volume of both sources before they hit your amplifiers or mixer.
- Flexible Switching: Dedicated footswitches allow you to select individual outputs or combine them, giving you instant control over your signal path during a performance.
- Active Buffered Circuitry: Maintains signal integrity and prevents high-end loss, ensuring your tone remains consistent.
- Visual Monitoring: Integrated LED indicators provide immediate visual confirmation of which signal path is currently active.
- Rugged Construction: Housed in cold-rolled steel for maximum durability on stage, featuring a quick-clip battery door for fast power swaps.
Use Cases
The Morley ABY Mix is engineered for a wide variety of musical applications:
- Dual Instrument Performance: Two guitarists or a bassist and guitarist can play simultaneously through one or two amplifiers.
- Keyboard Management: Control and mix two separate keyboards into a single mixing board or amplifier.
- Multi-Media Integration: Mix a CD or MP3 player into a live mixer alongside a primary instrument.
- Amp Switching: Route a single instrument to two different amplifiers to create a massive, layered sound.
Installation
Setup is straightforward and requires no complex configuration. Connect your signal sources to the inputs and your amplifiers or mixers to the outputs. The unit is powered by one 9V battery or a standard 9V DC adapter. Once powered, use the level knobs to balance your inputs and the footswitches to determine your routing path.
Compatibility
The Morley ABY Mix is compatible with any standard 1/4″ TS (Tip-Sleeve) instrument cables. It is designed for use with:
— Electric Guitars and Basses
— Electronic Keyboards and Synthesizers
— Audio Players (CD/MP3)
— Guitar Amplifiers and PA Mixers
Additional Details
- Manufacturer: Morley Pedals
- Dimensions: 5″ x 8″ x 0.16″
- Weight: 1.44 lbs
- Power Requirements: 1 x 9V Battery or 9V DC Adapter
- Housing: Cold-rolled steel
- Warranty: Two-year manufacturer warranty
